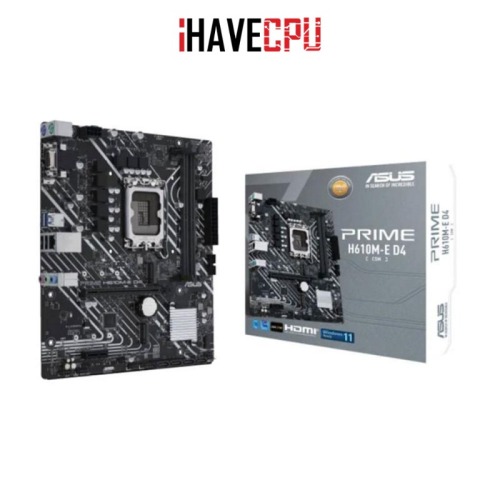

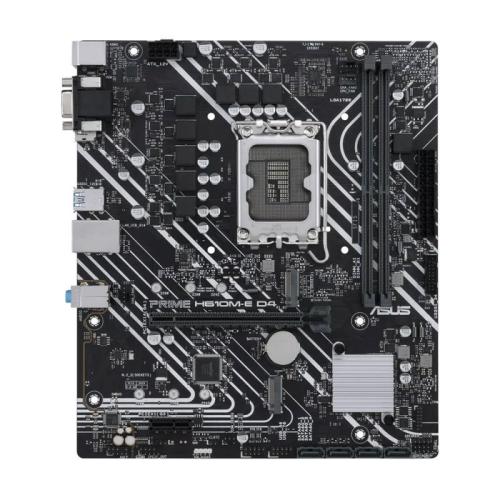

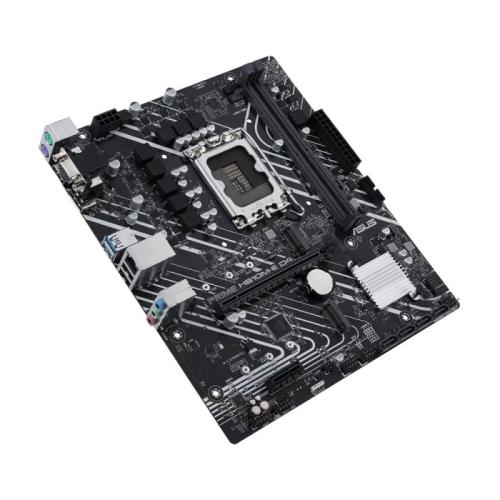

มาเธอร์บอร์ดซีรีส์ ASUS Prime ได้รับการออกแบบอย่างเชี่ยวชาญเพื่อปลดปล่อยศักยภาพของโปรเซสเซอร์ Intel® เจนเนอเรชั่น 12 ได้อย่างเต็มที่ Prime H610 นำเสนอการออกแบบพลังงานที่ทนทาน โซลูชั่นระบายความร้อนที่ครอบคลุม และตัวเลือกการปรับแต่งอัจฉริยะ ทำให้ผู้ใช้และผู้สร้าง PC DIY มีตัวเลือกการปรับแต่งประสิทธิภาพที่หลากหลายผ่านซอฟต์แวร์และเฟิร์มแวร์ที่ใช้งานง่าย
Warranty : 3 Years
Processor : 12th Gen Intel® Core™
CPU Socket Type : Intel LGA-1700
M/B Chipset : Intel® H610
Memory Slots : 2x DIMM
Max Memory Supported : 64 GB
Expansion Slots : 1 x PCIe 3.0 x1 Slot 1 x PCIe 4.0 x16 Slot
Storage Devices : 2 x M.2 slots 4 x SATA 6Gb/s ports
Onboard Graphics : Integrated Graphics Processor (Depends on CPU)
Onboard Audio Chipset : Realtek
Audio Channels : 7.1 Surround Sound High Definition Audio
LAN Chipset : Realtek® 1Gb Ethernet
LAN Speed : 10/100/1000 Mbps
Real Panel I/O : 1 x D-Sub port 1 x DisplayPort 1 x HDMI™ port 1 x LAN port 2 x PS/2 Keyboard/Mouse port 2 x USB 2.0 ports 2 x USB 3.2 Gen 1 ports 3 x Audio jack(s)
M/B Dimensions WxDxH : 24.4 cm x 21.1 cm
Power Pin : 24+8 Pin
Interface : PCIe 1.0 PCIe 2.0 PCIe 3.0 PCIe 4.0 SATA 3
Memory Type : DDR4
M/B Brand : ASUS
M/B Type : Micro ATX
