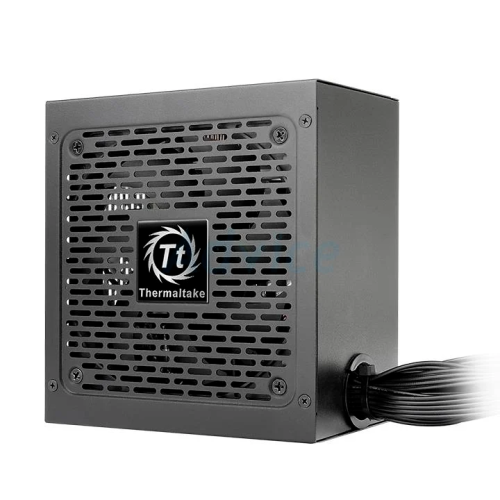

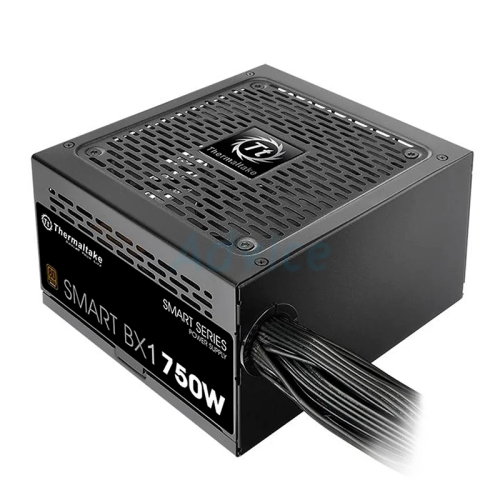

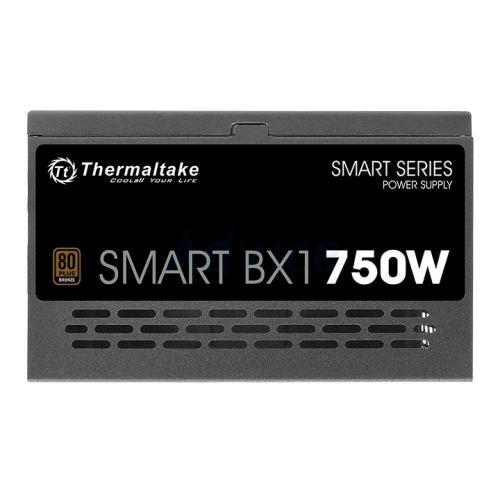

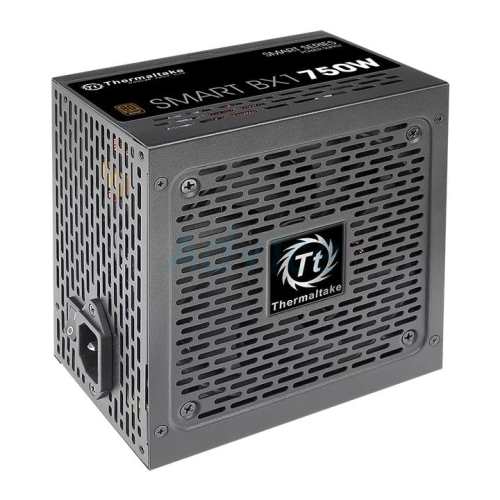

POWER SUPPLY (80+ BRONZE) 750W THERMALTAKE SMART BX1
- PSU รุ่นใหม่ของ Thermaltake มีการใช้ Premium Japanese Main Capacitor ทนทาน จ่ายไฟนิ่ง
- เป็น Powersupply ที่รองรับมาตรฐาน 80 PLUS Bronze
- พัดลมที่ใช้เป็นแบบ 120mm Hydraulic Bearing Fan
- สายไฟเป็นแบบ Non-Modular
รายละเอียดสินค้า
Ultra Quiet 120mm Hydraulic Bearing Fan
Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.
Low Ripple Noise
All ripples are lower than 80mV on +12V, and lower than 40mV on +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components, such as high-end graphics cards, to function reliably for longer.
Premium Japanese Main Capacitor
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Smart BX1 series saves energy through its high energy efficiency up to 88% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
คุณสมบัติ
| Brand | THERMALTAK |
| Model | Smart BX1 750W |
| Type | ATX 12V v2.3 and EPS v2.92 |
| Power Capacity | 750W |
| Input Voltage | 100V - 240V |
| Input Current | 12A max |
| Input Frequency Range | 50Hz - 60Hz |
| Operating Temperature | 5°C to + 40°C |
| Fan Size | 12cm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS®Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Regulation | N/A |
| Protection | N/A |
| Certification | 80 PLUS BRONZE |
| Modular | Non Modular |
| ATX Main Connector | (20+4 Pin) x 1 Connector |
| CPU Power Connector | (4+4 Pin) x 2 Connector |
| PCIe Power Connector | (6+2 Pin) x 2 Connector |
| SATA Power Connector | 6 Connector |
| Peripheral Power Connector | 4 Connector |
| Floppy Power Connector | 1 Connector |
| RGB Power Connector | None |
| PSU Length | 140mm |
| Dimension | (W x D x H) : 15.00 x 14.00 x 8.60 cm |
| Net Weight | 0.00 KG |
| Package Dimension | (W x D x H) : 25.00 x 9.50 x 19.50 cm |
| Gross Weight | 0.00 KG |
| Volume | 4,631.25 cm3 |
