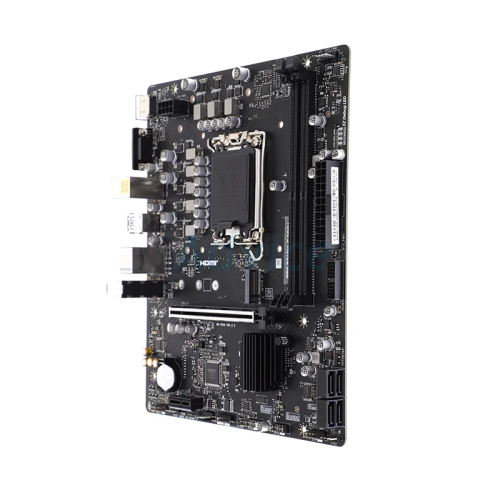

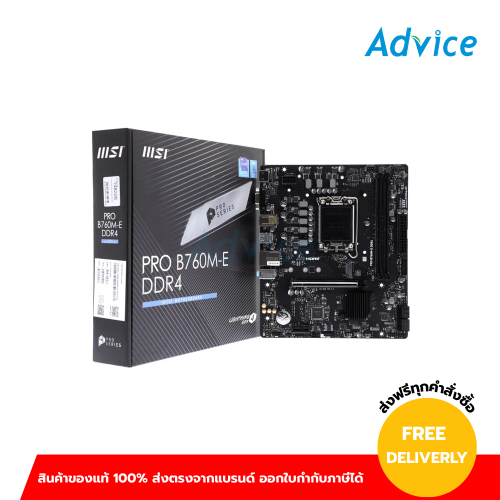

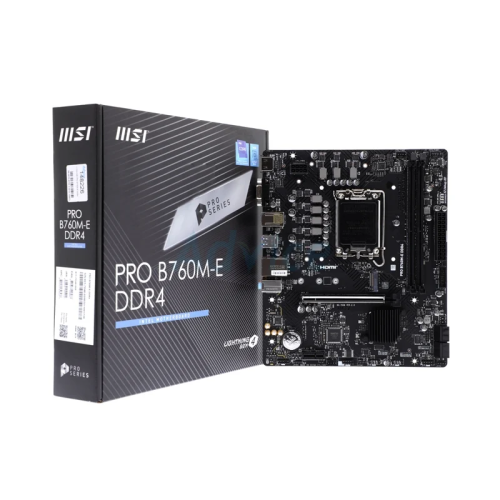

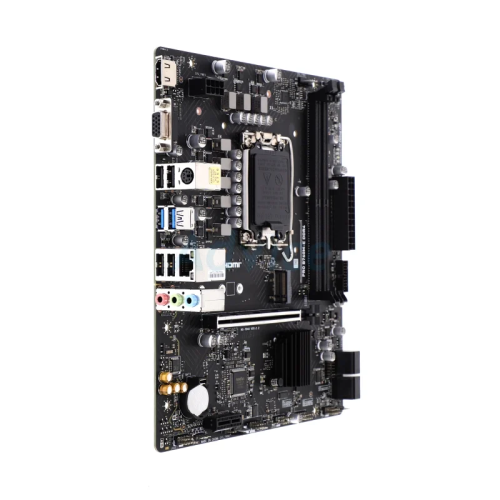

MAINBOARD (1700) MSI PRO B760M-E DDR4

Supports 12th/13th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1700 socket
Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

รายละเอียดสินค้า MAINBOARD (1700) MSI PRO B760M-E DDR4

อ้างอิงจาก:https://www.msi.com/

คุณสมบัติ MAINBOARD (1700) MSI PRO B760M-E DDR4

Brand	MSI
Model	MSI PRO B760M-E DDR4
CPU Support	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
Socket	1700
Chipset	INTEL B760
Memory Support	2x DDR4, Maximum Memory Capacity 64GB Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Memory Type	DDR4
Memory Bus	2133/ 2666/ 2933/ 3200
Maximum Memory Bus	4800
Memory Slot	2
Graphics	1x HDMI™ 1x VGA Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support	N/A
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to (From CPU) PCI_E2 PCIe 3.0 supports up to (From Chipset)
Maximum PCIe Version	PCIe 4.0
Storage	1x M.2 slot M.2_1 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
M.2 Storage Type Support	PCIe 4.0
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
Internal I/O Connectors	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 1x USB 3.2 Gen1 Type A

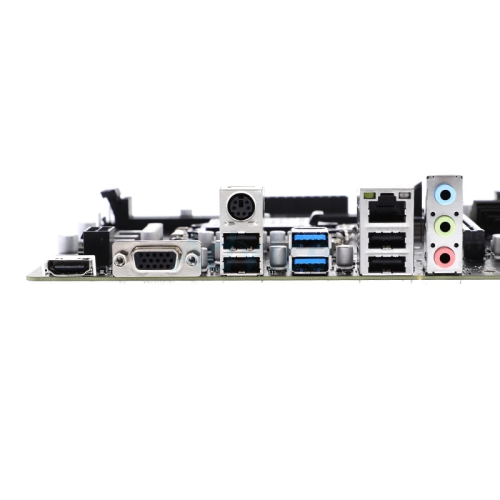

Back Panel Connectors	HDMI™ VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio Connectors USB 2.0 USB 2.0
LAN	Realtek® RTL8111H Gigabit LAN
Wireless Data Network	N/A
Form Factor	mATX 200mmx236.16mm
H/W Monitoring	N/A
BIOS	N/A
Special Features	N/A
Software Features	N/4
Operating System Support	Support for Windows® 11 64-bit, Windows® 10 64-bit
Package Contents	N/A
Package Dimension	(W x D x H) : 26.00 x 26.00 x 5.50 cm
Gross Weight	0.70 KG
Volume	3,718.00 cm³

** ประกัน 3 ปี
