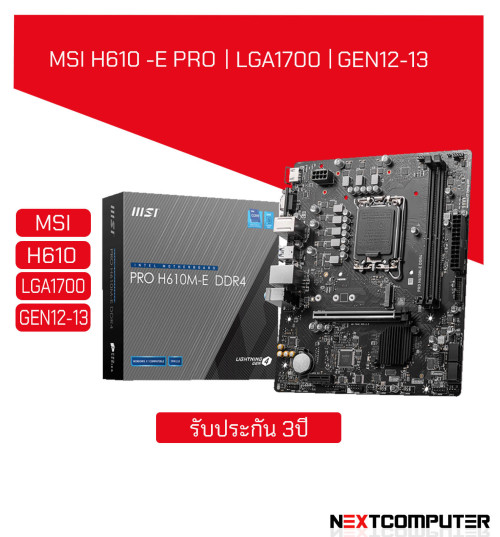

MAINBOARD (1700) MSI PRO H610M-E DDR4

• Support CPU : 12th/ 13th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors
• From Factor : Micro ATX
• Memory Channel : Dual Channel DDR4 2DIMM
• Memory Support : up to 3200
• Memory MAX : 64GB
• M.2 Slot : 1 slot
• SATA III 6G : 4 ports
• PCIe 4.0x16 : 1 slot
• Lan Port : Realtek^® RTL8111H 1Gbps LAN controller
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

คุณสมบัติ MAINBOARD (1700) MSI PRO H610M-E DDR4

• Brand	MSI
  Model	PRO H610M-E DDR4
  CPU Support	Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors  Processor socket LGA1700 Please refer to www.msi.com for more information on compatible memory.
  CPU Brand	Intel
  Socket	1700
  Chipset	Intel H610 Chipset
  Memory Support	2 x DDR4 memory slots, support up to 64GB  Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Please refer to www.msi.com for more information on compatible memory.
  Memory Type	DDR4
  Memory Bus	3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
  Maximum Memory Bus	3200
  Memory Slot	2
  Graphics	1 x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.
  Multi Graphic Support	N/A
  Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
  Expansion Slots	1 x PCIe x16 slot (From CPU)Supports up to PCIe 4.0 x16 1 x PCIe x1 slot (From H610 chipset)Supports PCIe 3.0 x1
  Maximum PCIe Version	PCIe 4.0
  Storage	4 x SATA 6Gb/s ports (From H610 chipset) 1 x M.2 slot (Key M) (from CPU)Supports up to PCIe 3.0 x 4 Supports 2242/ 2260/ 2280 storage devices
  M.2 Storage Type Support	NVMe
  M.2 Slot	1
  USB	1 x USB 3.2 Gen 1 5Gbps connector (From H610 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2 x USB 2.0 Type-A connectors (From Hub-GL850G)Supports additional 4 USB 2.0 ports
  Internal I/O Connectors	1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Serial port connector
  Back Panel Connectors	HDMI VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0
  LAN	Realtek® RTL8111H 1Gbps LAN controller
  Wireless Data Network	None
  Form Factor	Micro ATX
  H/W Monitoring	N/A
  BIOS	N/A
  Special Features	N/A
  Software Features	N/A
  Operating System Support	Windows® 11 64-bit, Windows® 10 64-bit
  Package Contents	N/A
  Package Dimension	(W x D x H) : 26.00 x 26.00 x 5.50 cm
  Gross Weight	0.70 KG
  Volume	3,718.00 cm3
