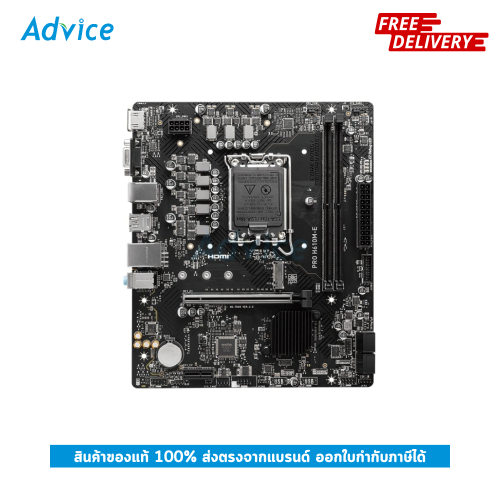

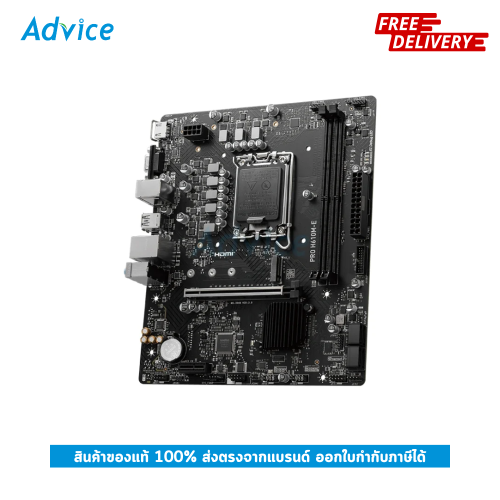

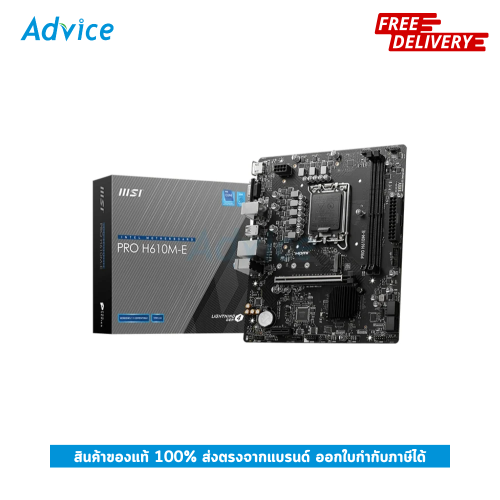

PRO H610M-E DDR5

Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700

Intel

1700

INTEL H610

2 x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 5600 MHz (by JEDEC & POR)
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

DDR5

5600 MHz

5600

2

1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

N/A

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

1x PCI-E x16 slot
1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)

PCIe 4.0

1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

NVMe

1

4 x USB 2.0 (Rear)
4 x USB 2.0 (Front)
2 x USB 3.2 Gen1 Type A (Rear)
2 x USB 3.2 Gen1 Type A (Front)

1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
2 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)

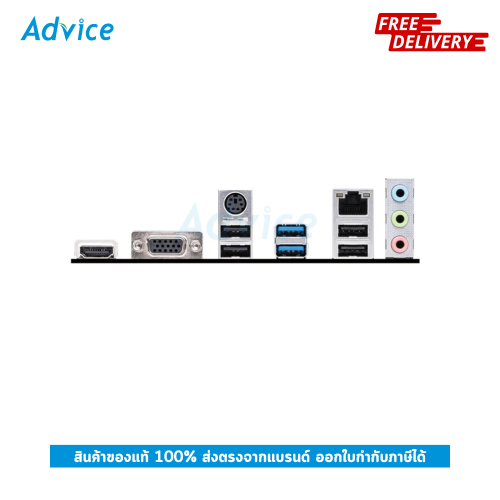

4 x USB 2.0 ports
2 x USB 3.2 Gen1 Type A ports

1 x HDMI™
1 x VGA
1 x Keyboard / Mouse
1 x LAN port
1 x Audio Connectors
2 x USB 3.2 Gen1 Type A (Rear)
4 x USB 2.0 (Rear)

Realtek® RTL8111H Gigabit LAN

None

Micro ATX

N/A

N/A

4x EZ Debug LED

N/A

Support for Windows® 11 64-bit, Windows® 10 64-bit

N/A
