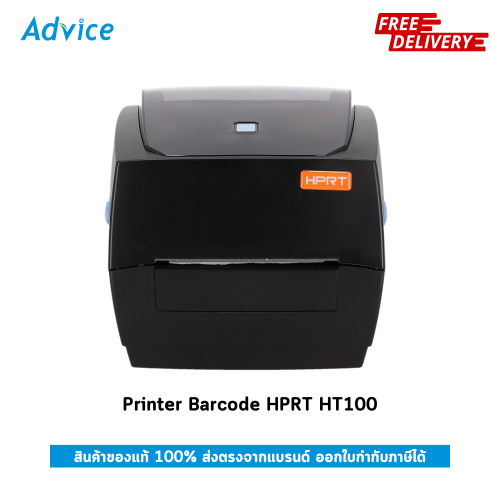

Printer Barcode HPRT HT100

• - Print Method : Thermal Transfer & Direct Thermal
• - Resolution : 203 DPI
• - Print Speed : 5 นิ้ว/วินาที
• - Interface : USB / RS232 / Ethernet LAN
• - Memory : Flash 16 MB, SDRAM 32 MB
• - ใช้กับริบบอน : 110 x 100 (แกน 0.5 นิ้ว)
• - ใช้กับกระดาษ : ความกว้าง 0.79 - 4.65 นิ้ว
• - Compact, space-saving design
• - Direct thermal and thermal transfer printing applications
• - High printing speed(5IPS), fast label throughout
• - Double type sensors allowing to support broad range of labels
• - Dual-wall frame, robust and sturdy structure
• - TPH special designed overcoat, endure large printing volume
• - ZPL and TSPL programming language
• - Bundled with Bartender label designer software & Seagull Windows Driver

คุณสมบัติ Printer Barcode HPRT HT100

*ประกัน 1 ปี

Brand	HPRT
Model	HT100
Print Method	Direct Thermal & Thermal Transfer
Processor	32 bit RISC CPU
Memory	RAM 32 MB Flash 16 MB
Resolution	203dpi (8dots/mm)
Print Speed	5IPS Max
Print Width	108mm Max
Print Length	15mm - 1200mm
Media	Types : Roll-fed or Fan-fed, Die-cut or Continuous label, Tag stock, Continuous receipt paper Width : 0.79’’ (20mm) - 4.65’’ (118mm) Thickness : 0.003’’ (80um) - 0.007’’ (180um) Label Roll Diameter : 5’’ (127mm) Core Diameter : 0.5’’ (25.4mm), 1’’ (25.4mm), 1.5’’ (38mm)
Ribbon	Types : Wax, Wax/Resin, Resin Width : 1.33’’ (33.8mm) - 4.33’’ (110mm) Length : 328’ (100m) Core Diameter : 0.5’’ (25.4mm)

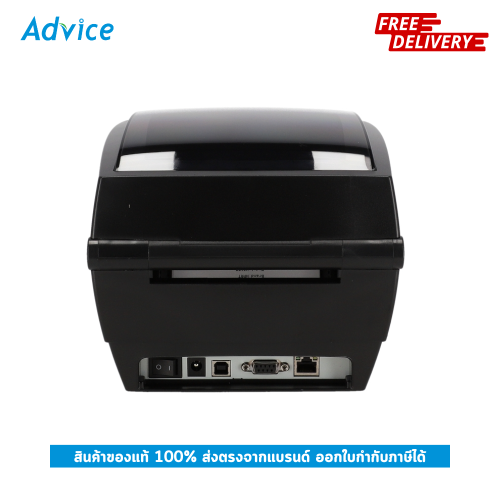

Interface	USB / RS 232C / Ethernet
Display Panel	Feed button with tri-color LED
Sensor	Adjustable reflective sensor Fixed transmissive sensor (Central aligned) Head-up sensor Ribbon end sensor
Font	Programming Language : TSPL, ZPL Simulation Resident Fonts Bitmap Fonts : 8, 12, 16, 24, 32 and OCR A & B 90°, 180°, 270° rotatable. 10 times maximum expandable in horizontal and vertical directions TTF Fonts : Monotype CG Triumvirate™ scalable true type font Download Fonts Bitmap Fonts :  90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable TTF Fonts : 90°, 180°, 270° rotatable Asian Fonts : 16x16, 24x24. Traditional Chinese, Simplified Chinese, Japanese , Korean Code Pages : 39
Barcode	1D : 20 2D : PDF417, Maxicode, DataMatrix, QR Code, Aztec
Graphics	N/A
System Support	Label Design : Label Design Driver Driver : Windows 2000, XP, Vista7, 8, 10 By Seagull
Enviroment	Operation : 41°F(5°C)-104°F(40°C), 30%-85%, non-condensing Storage : -4°F(-20°C)-122°F(50°C), 10%-90%, non condensing
Power Supply	Input : AC100-240V, 50/60Hz, Output : DC 24V/2.5A, peak 7A
Special Features	N/A

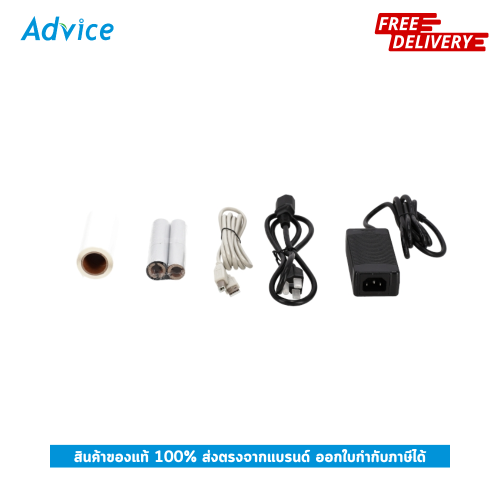

Package Contents	N/A
Dimension	(W x D x H) : 22.60 x 28.50 x 17.10 cm
Net Weight	2.26 KG
Package Dimension	(W x D x H) : 32.00 x 24.00 x 22.00 cm
Gross Weight	2.81 KG
Volume	16,896.00 cm3
