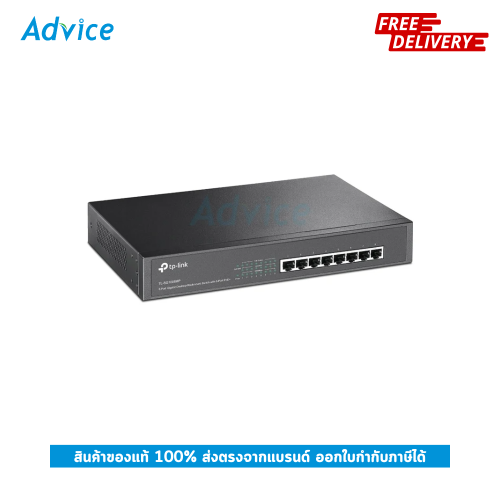

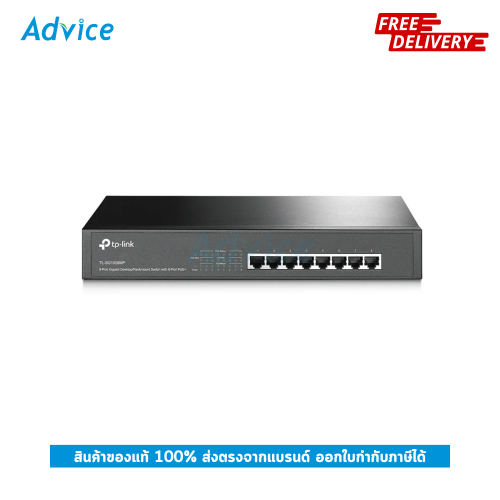

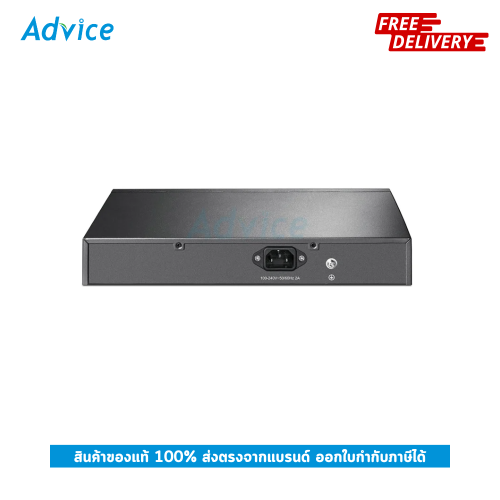

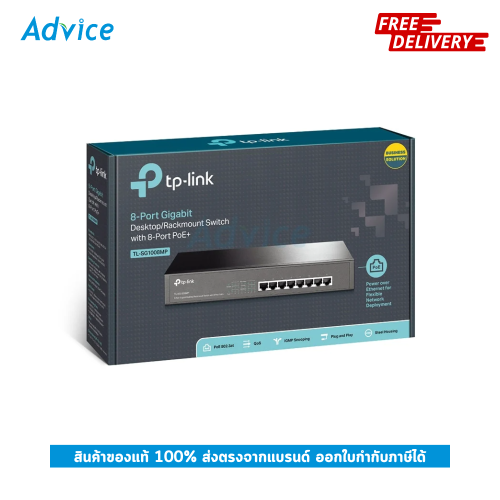

Gigabit Switching Hub 8 Port TP-LINK TL-SG1008MP (11,8 POE)
- - Standards and Protocols : IEEE 802.3u, 802.3x,802.3 af/at
- - Interface : 8x 10/100/1000Mbps RJ45 Ports (PoE+ Ports 8 Ports)
- - Switching Type : Unmanaged
- - Switching Capacity : 16Gbps
- - Casing : Metal
- - Package Contents
- - TL-SG1008MP
- - Power Cord
- - Rackmount Kit
- - Rubber Feet
- - Power Supply : 153W
- - Innovative energy-efficient technology reduces power consumption
- - Rack mountable with included rack mount bracket
- - Plug and play design, no configuration required
- - TL-SG1008MP
- - Power Cord
- - Rackmount Kit
- - Rubber Feet
รายละเอียดสินค้า Gigabit Switching Hub 8 Port TP-LINK TL-SG1008MP (11,8 POE)
What This Product Does
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP reduces power consumption, making it an eco-friendly solution for your business network.
How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.
Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
คุณสมบัติ Gigabit Switching Hub 8 Port TP-LINK TL-SG1008MP (11,8 POE)
Brand TP-LINK Model TL-SG1008MP
Network Interface 8 x 10/100/1000Mbps RJ45 Ports (PoE) AUTO Negotiation/AUTO MDI/MDIX
Transmission Method Store-And-Forward
MAC Address Table 4K
Packet Buffer Memory 1.5Mbits
Backbound Bandwidth 16Gbps
Features Compatible With IEEE 802.3af/at Compliant power devices (PD)
Port Priority Function
MAC Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Fan Quantity 1
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
PoE Standard: 802.3at/af (30W)
PoE+ Ports: 8 Ports
Total PoE Budget: 126W
Power Supply 100-240VAC, 50/60Hz
Power Consumption 9.9W (no PD load)
144.4W (with 124W PD load)
Environment Operating Temperature : 0℃~40℃ (32℉~104℉)
Storage Temperature : -40℃~70℃ (-40℉~158℉)
Operating Humidity : 10%~90% non-condensing
Storage Humidity : 5%~90% non-condensing
Certifications FCC, RoHS
Package Contents TL-SG1008MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Package Dimension (W x D x H) : 25.00 x 40.00 x 9.00 cm Gross Weight 2.18 KG Volume 9,000.00 cm3
| Brand | TP-LINK |
| Model | TL-SG1008MP |
| Network Interface | 8 x 10/100/1000Mbps RJ45 Ports (PoE) AUTO Negotiation/AUTO MDI/MDIX |
| Transmission Method | Store-And-Forward |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5Mbits |
| Backbound Bandwidth | 16Gbps |
| Features | Compatible With IEEE 802.3af/at Compliant power devices (PD) |
| Fan Quantity | 1 |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| PoE | Standard: 802.3at/af (30W) |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | 9.9W (no PD load) |
| Environment | Operating Temperature : 0℃~40℃ (32℉~104℉) |
| Certifications | FCC, RoHS |
| Package Contents | TL-SG1008MP |
| Package Dimension | (W x D x H) : 25.00 x 40.00 x 9.00 cm |
| Gross Weight | 2.18 KG |
| Volume | 9,000.00 cm3 |
