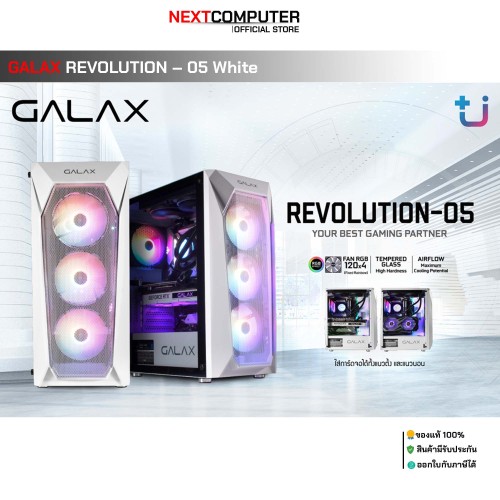

GALAX REVOLUTION – 05 White (REV-05W)
ASCENTI 1 YEAR WARANTY
Now available in arctic white color, REV-05W is by far the tallest PC case in the Revolution family and is compatible with ATX, M-ATX, ITX motherboards. Standing tall at 470mm, it provides a spacious interior for customization, allowing you to choose between vertical or horizontal mounting for the graphics card and maximizing cooling and storage potential for your next build.
DESCRIPTION
- All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
SPECIFICATION
| Form Factor (Midi, Micro, Mini ITX, Full) | ATX, M-ATX, ITX | |
| Chassis | SPCC + Tempered Glass | |
| PSU Form Factor | ATX | |
| M/B Form Factor | ATX, M-ATX, ITX | |
| Front Panel | ABS,Mesh cover | |
| Top Panel | Metal cover | |
| Side Panel | Left | Tempered Glass |
| Right | Metal cover | |
| External Drive Bay(s) | 5.25″ (ODD) | *0 |
| 3.5″ | *0 | |
| Internal Drive Bay(s) | 3.5″ (HDD) | *2 |
| 2.5″ (SSD) | *3 | |
| I/O | Buttons | *2 |
| USB1.1 Port(s) | *0 | |
| USB2.0 Port(s) | *2 | |
| USB3.0 Port(s) | *1 | |
| USB3.1 Port(s) | *0 | |
| HD Audio Support | *1 | |
| Card Reader (Support) | *0 | |
| P-Lock | *0 | |
| RGB Controller | *0 | |
| Controller max. fans | *0 | |
| RGB Controller max. LED strips | *0 | |
| Remote (IR or RF) | *0 | |
| Cooling Fan Support | Front | 3x120mm (Fan optional) |
| Top | 2x120mm，2x140mm (Fan optional) | |
| Rear | 1x120mm (Fan optional) | |
| Side | 0 | |
| Bottom | 2x120mm (Fan optional) | |
| Water Cooling Support (Radiator Size) | Front | 240mm/280mm/360mm |
| Top | 240mm/280mm | |
| Rear | 120mm | |
| Dimensions | Chassis | (L)350*(W)205*(H)470mm |
| Full Case (inc Fascia) | (L)400.6*(W)205*(H)481.5mm | |
| Carton | (L)532*(W)258*(H)465mm | |
| Net Weight (Kg) | 4.3KG | |
| Gross Weight (Kg) | 4.95KG | |
| VGA Card Length | up to 330mm | |
| CPU Cooler Height | 160mm | |
| Cable Management Depth | 18mm |
