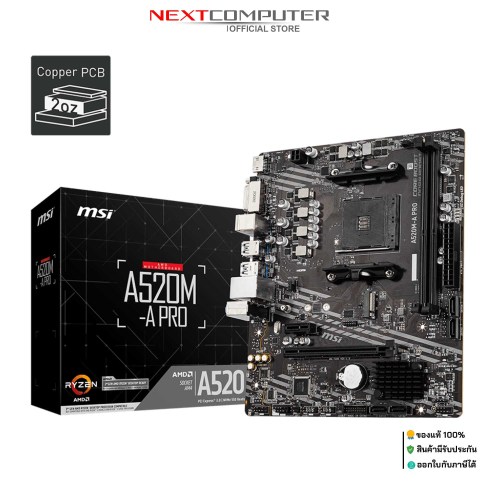

MAINBOARD (AM4) MSI A520M-A PRO DDR4

Support CPU : AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
From Factor : Micro ATX
Chipset : AMD A520 Chipset
Memory Channel : Dual Channel DDR4 2DIMM
Memory Support : up to 4600(O.C.)
Memory MAX : 64GB
M.2 Slot : 1 slot
SATA III 6G : 4 ports
PCIe 3.0x16 : 1 slot
Lan Port : 1 Gigabit LAN
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
Audio Boost: Reward your ears with studio grade sound quality
Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
*Not compatible with AMD Ryzen 5 3400G & AMD Ryzen 3 3200G Processors

ประกัน 3 ปี

รายละเอียดสินค้า MAINBOARD (AM4) MSI A520M-A PRO DDR4

อ้างอิงจาก : https://www.msi.com/

คุณสมบัติ MAINBOARD (AM4) MSI A520M-A PRO DDR4

Brand	MSI
Model	A520M-A PRO
CPU Support	Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors *Not compatible with AMD Ryzen 5 3400G & AMD Ryzen 3 3200G Processors
CPU Brand	AMD
Socket	AM4
Chipset	AMD A520
Memory Support	2 x DDR4 memory slots, support up to 64GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE - 1DPC 1R max speed 4600 MHz - 1DPC 2R max speed 3866 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Memory Bus	4600
Graphics	1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz,* Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz* Maximum shared memory of 16 GB Available for the processor with integrated graphics. *Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support	None
Audio	Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots	1 x PCIe 3.0 x1 slot 1 x PCIe x16 slot
Maximum PCIe Version	PCIe 3.0
Storage	AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) - Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G, 3000 and 3000G processors - Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors - Supports 2242/ 2260/ 2280 storage devices
M.2 Storage Type Support	NVMe, SATA
M.2 Slot	4
USB	AMD A520 Chipset 2 x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4 x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x M.2 slots (M-Key) 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 xTPM module connector 1 x Clear CMOS jumper
Back Panel Connectors	1 x LAN port 1 x HDMI 1 x DVI-D 2 x Keyboard / Mouse 4 x USB 3.2 Gen 1 5Gbps Type-A 2 x USB 2.0 Ports 3 x Audio Connectors
LAN	1 x Realtek^® RTL8111H Gigabit LAN controller
Wireless Data Network	None
Form Factor	Micro ATX
H/W Monitoring	N/A
BIOS	N/A
Special Features	N/A
Software Features	N/A
Operating System Support	Windows 10 64-bit
Package Contents	N/A
Dimension	(W x D x H) : 20.00 x 23.60 x 3.60 cm
Net Weight	0.45 KG
Package Dimension	(W x D x H) : 26.00 x 26.00 x 5.50 cm
Gross Weight	0.74 KG
Volume	3,718.00 cm³
