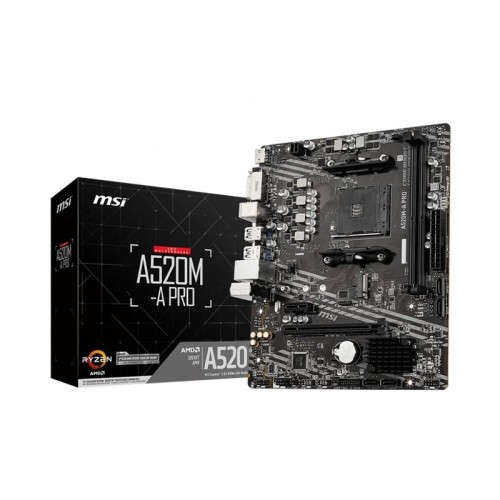

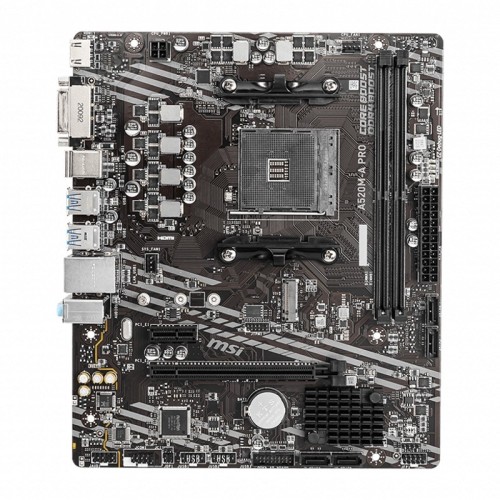

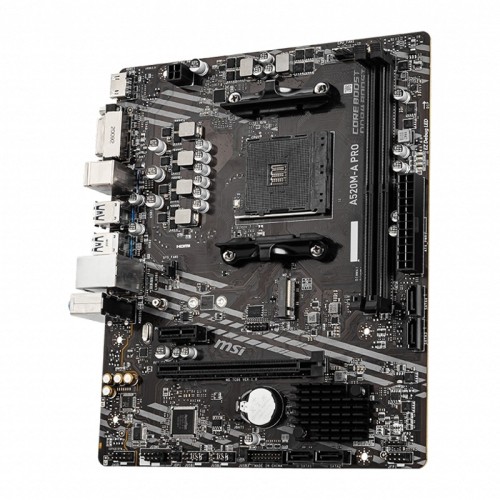

A520M-A PRO

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors

*Not compatible with AMD Ryzen 5 3400G & AMD Ryzen 3 3200G Processors

AMD

AM4

AMD A520

2 x DDR4 memory slots, support up to 64GB

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4600 MHz
- 1DPC 2R max speed 3866 MHz

Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory

4600

1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz*,**
Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz*
Maximum shared memory of 16 GB

*Available for the processor with integrated graphics.
**Graphics specifications may vary depending on the CPU installed.

None

Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio

1 x PCIe 3.0 x1 slot
1 x PCIe x16 slot

PCIe 3.0

AMD A520 Chipset

4x SATA 6Gb/s ports

1x M.2 slot (Key M) (from AMD Processor)
  - Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G, 3000 and 3000G processors
  - Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors
  - Supports 2242/ 2260/ 2280 storage devices

NVMe, SATA

4

AMD A520 Chipset
2 x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4 x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x M.2 slots (M-Key)
1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 xTPM module connector
1 x Clear CMOS jumper

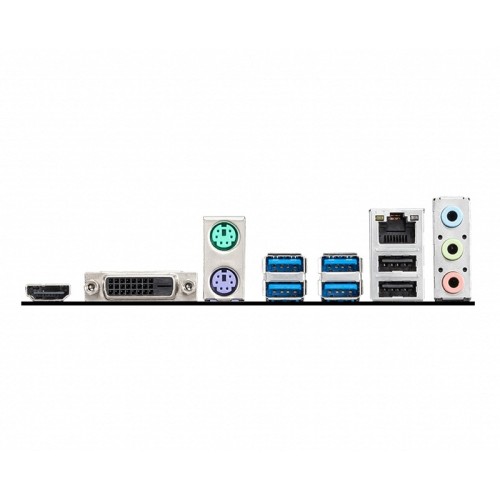

1 x LAN port
1 x HDMI
1 x DVI-D
2 x Keyboard / Mouse
4 x USB 3.2 Gen 1 5Gbps Type-A
2 x USB 2.0 Ports
3 x Audio Connectors

1 x Realtek^® RTL8111H Gigabit LAN controller

None

Micro ATX

N/A

N/A

N/A

N/A

Windows 10 64-bit

N/A
