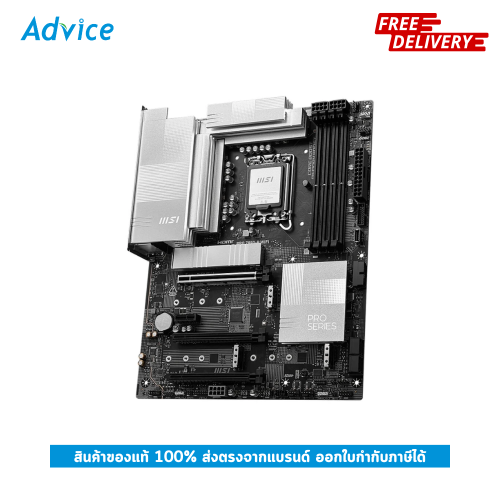

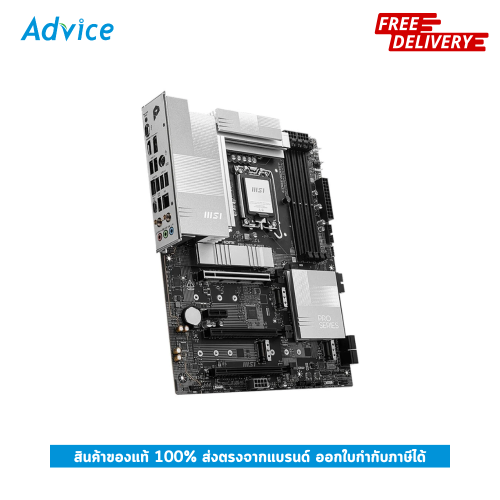

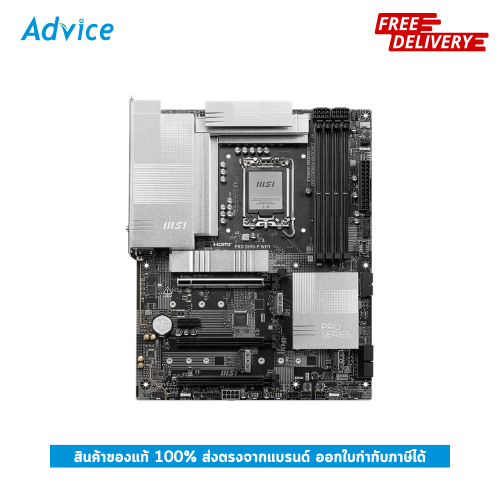

MAINBOARD (1851) MSI Z890-P WIFI (DDR5)

Support CPU : Intel Core Ultra Processors (Series 2)
Form Factor : ATX
Chipset : Intel Z890 Chipset
Memory Channel : Dual Channel DDR5 4DIMM
Memory Support : up to 9200(O.C.)
Memory MAX : 256GB
M.2 Slot : 4 slots
SATA III 6G : 4 ports
PCIe 5.0x16 : 1 slot
Lan Port : 5 Gigabit LAN
Wireless : Wi-Fi 7
Ultra Performance : 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard : Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
Audio Boost : Reward your ears with studio grade sound quality for the most immersive gaming experience

**ประกัน 3 ปี

รายละเอียดสินค้า MAINBOARD (1851) MSI Z890-P WIFI (DDR5)

อ้างอิงจาก : www.msi.com

คุณสมบัติ MAINBOARD (1851) MSI Z890-P WIFI (DDR5)

Brand	MSI
Model	PRO Z890-P WIFI (DDR5)
CPU Support	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
CPU Brand	Intel
Socket	1851
Chipset	Intel Z890
Memory Support	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Maximum Memory Bus	9200
Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 1.4 over USB Type-C®, with a maximum resolution of 4K 120Hz / 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support	N/A
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots	3 x PCI-E x16 slot (Qty) 1 x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Maximum PCIe Version	PCIe 5.0
Storage	4 x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G (Qty) *Please refer to the manual for M.2 SSD heatsink restrictions. Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
M.2 Storage Type Support	NVMe, SATA
M.2 Slot	4
USB	4 x USB 2.0 (Rear) 4 x USB 2.0 (Front) 2 x USB 5Gbps Type A (Rear) 4 x USB 5Gbps Type A (Front) 1 x USB 10Gbps Type A (Rear) 1 x USB 10Gbps Type C (Rear) 1 x USB 20Gbps Type C (Front) 1 x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
Internal I/O Connectors	1 x Thunderbolt5 card connector(JTBT5, support RTD3) 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin) 1 x CPU Fan 1 x PUMP_SYS Fan 5 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Tuning Controller connector(JDASH) 3 x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 4 x USB 5Gbps Type A ports 1 x USB 20Gbps Type C ports

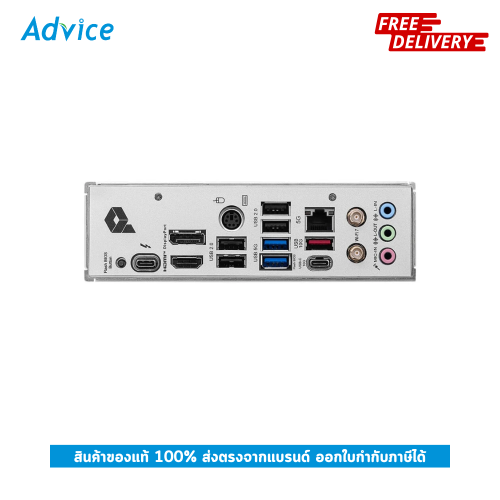

Back Panel Connectors	4 x USB 2.0 2 x USB 5Gbps Type-A 1 x USB 10Gbps Type-C 1 x USB 10Gbps Type-A 1 x Thunderbolt™ 4 40Gbps (Type-C) 1 x HDMI™ 1 x DisplayPort Audio Connectors 5G LAN Wi-Fi / Bluetooth Mouse / Keyboard Flash BIOS Button
LAN	Realtek® 8126 5Gbps LAN
Wireless Data Network	Intel® Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Form Factor	ATX
H/W Monitoring	N/A
BIOS	N/A
Special Features	LED FEATURE 4 x EZ Debug LED
Software Features	N/A
Operating System Support	Support for Windows® 11 64-bit
Package Contents	N/A
