Horizontal axis : Distance from the center of the image
S : Sagittal
M : MeridionalSpatial freguency 15lines/mmDistance from the center of the imageSpatial freguency 45lines/mmDistance from the center of the imageType

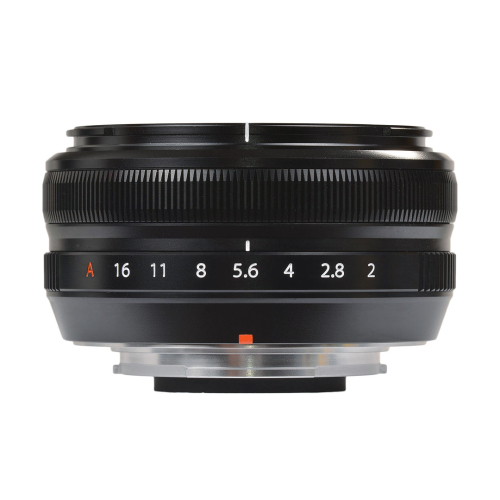

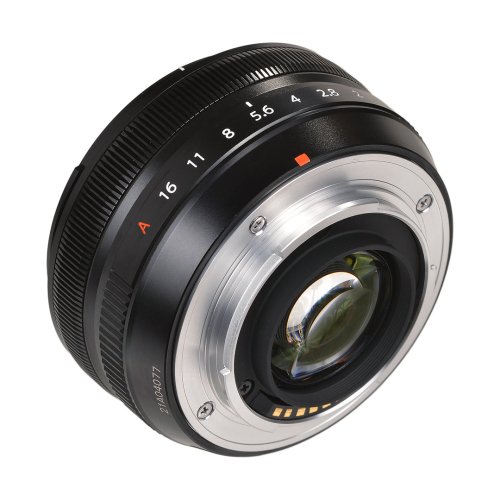

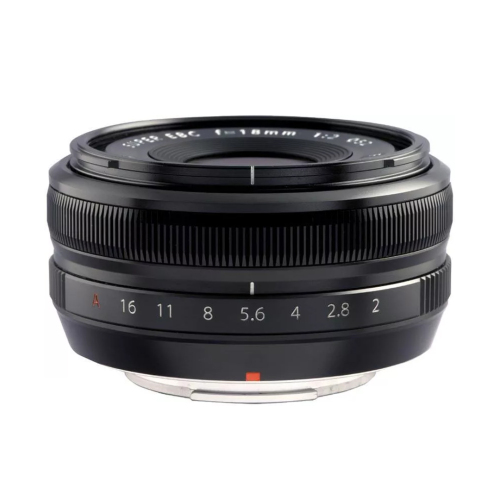

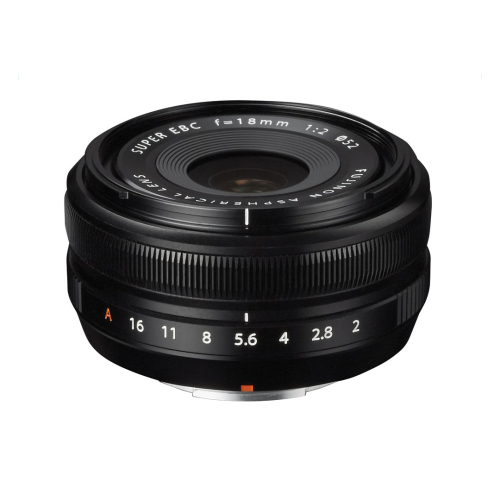

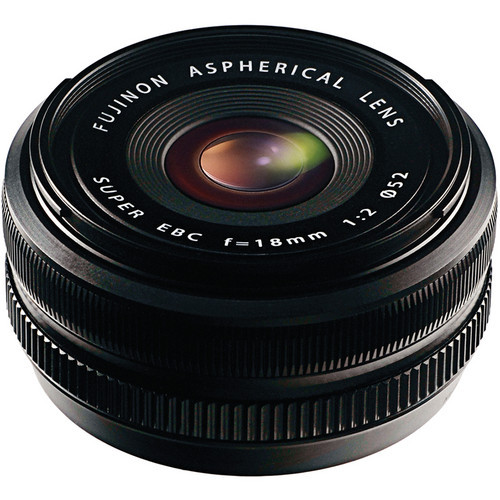

FUJINON XF18mmF2 R
Lens construction
8 elements in 7 groups (includes 2 aspherical elements)
Focal length
f=18mm (27mm in 35mm format equivalent)
Angle of view
76.5°
Max. aperture
F2.0
Min. aperture
F16
Aperture control
Number of blades
7 (rounded diaphragm opening)
Stop size
1/3EV (19 stops)
Focus range
Normal
0.8m - ∞
Macro
18cm - 2.0m
Max. magnification
0.14x
External dimensions : Diameter x Length*1 (approx.)
ø64.5mm x 33.7mm
Weight*2 (approx.)
116g
Filter size
ø52mm
