Horizontal axis : Distance from the center of the image
S : Sagittal
M : MeridionalWide
Spatial frequency 15 lines/mm
Spatial frequency 45 lines/mm
Telephoto
Spatial frequency 15 lines/mm
Spatial frequency 45 lines/mm
Type
XF150-600mmF5.6-8 R LM OIS WR
Lens configuration
24 elements in 17 groups (includes 3 ED and 4 super ED elements)
Focal length
f=150-600mm(229-914mm)
Angle of view
10.8°-2.7°
Max. aperture
F5.6-F8
Min. aperture
F22
Aperture controlNumber of blades
9(rounded diaphragm opening)
Step size
1/3EV (13steps)Minimum focus distance(mesured from focal plane)
2.4m
Max. magnification
T:0.24x
External dimensions : Diameter x Length*1 (approx.)
Ø99mm×314.5mm
Weight*2 (approx.)
1,605g
Filter size
Ø82mm
Accessories includedFront lens cap FLCP-82
Rear lens cap RLCP-001

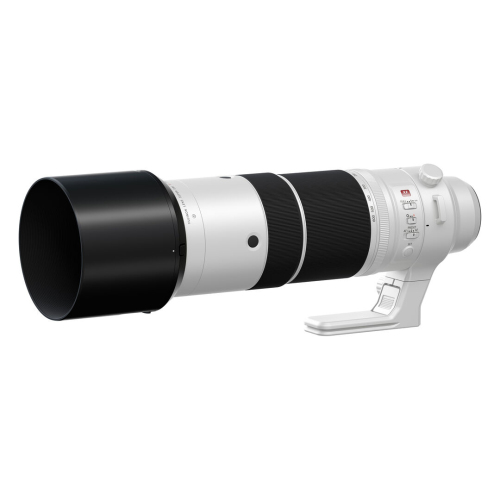

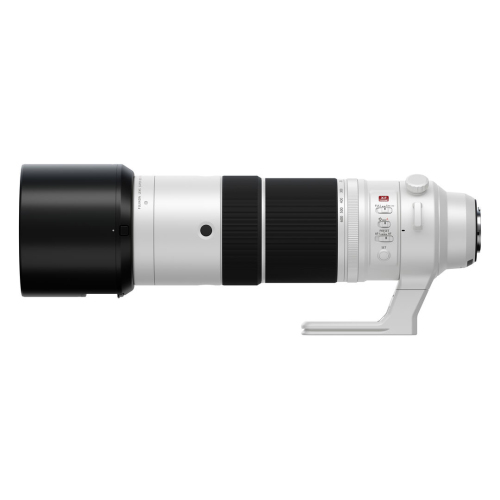

Lens hood
Lens pouch
Tripod collar foot
Shuolder strap*1 dis
