Horizontal axis : Distance from the center of the image
S : Sagittal
M : MeridionalSpatial frequency 15 lines/mmDistance from the center of the imageSpatial frequency 45 lines/mmDistance from the center of the image
Type

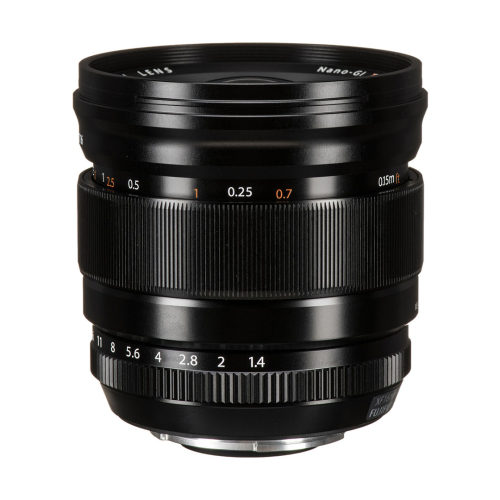

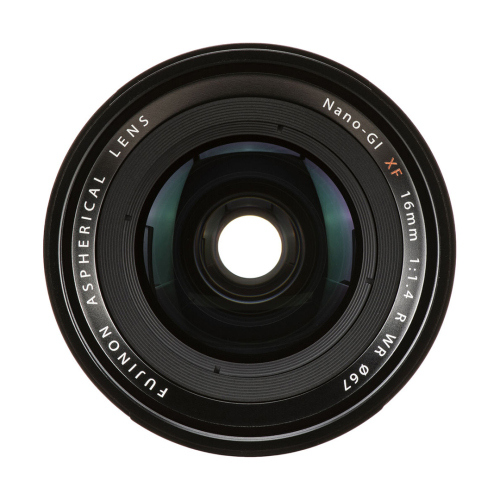

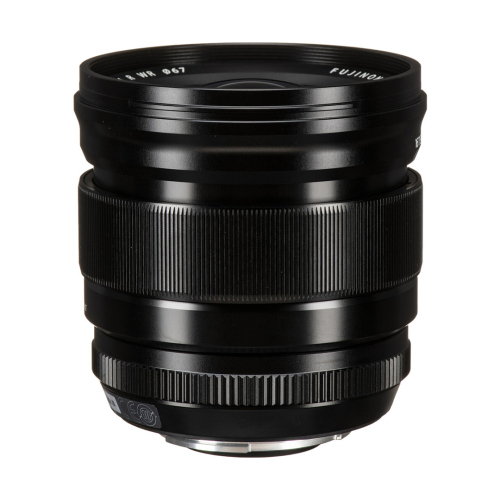

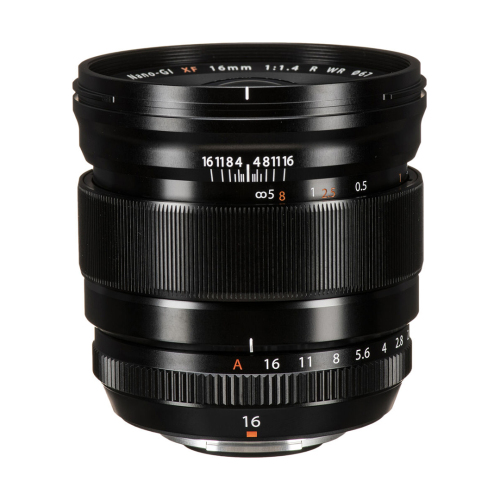

FUJINON XF16mmF1.4 R WR
Lens configuration
13 elements 11 groups (includes 2 aspherical and 2 extra low dispersion elements)
Focal length
f=16mm (24mm in 35mm format equivalent)
Angle of view
83.2°
Max. aperture
F1.4
Min. aperture
F16
Aperture control
Number of blades
9 (rounded diaphragm opening)
Step size
1/3EV (22 steps)
Focus range
15cm - ∞
Max. magnification
0.21x
External dimensions : Diameter x Length*1 (approx.)
ø73.4mm x 73.0mm
Weight*2 (approx.)
375g
Filter size
ø67mm
