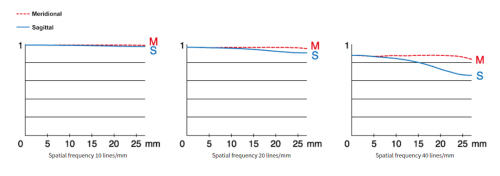

Horizontal axis : Distance from the center of the image
S : Sagittal
M : Meridional
Type

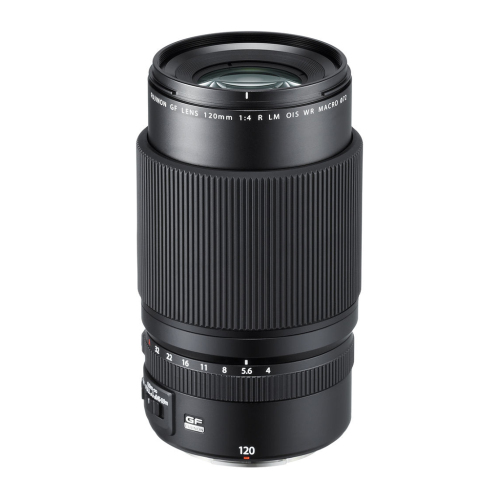

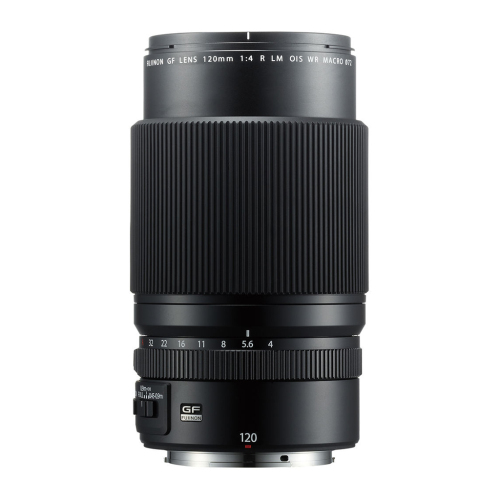

FUJINON GF120mmF4 R LM OIS WR Macro

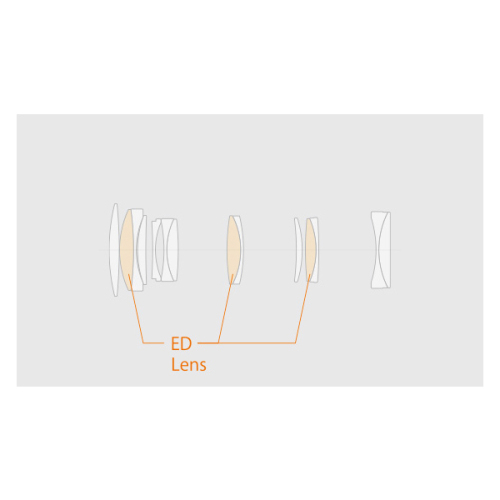

Lens configuration
14 elements in 9 groups (includes 3 extra-low dispersion elements)
Focal length
f=120mm (95mm in 35mm format equivalent)
Angle of view
25.7°
Max. aperture
F4
Min. aperture
F32
Aperture control
Number of blades : 9(rounded diaphragm opening)
Step size : 1/3EV (19 steps)
Focus range
45cm - ∞
Max. magnification
0.5x
External dimensions : Diameter x Length*1 (approx.)
ø89.2mm×152.5mm
Weight*2 (approx.)
980g
Filter size
ø72mm
Accessories included
Lens Cap FLCP-72II
Lens rear cap RLCP-002
Lens hood
Lens case*1 Distance from camera lens mount flange
*2 Excluding lens cap, lens hood and hood cap
