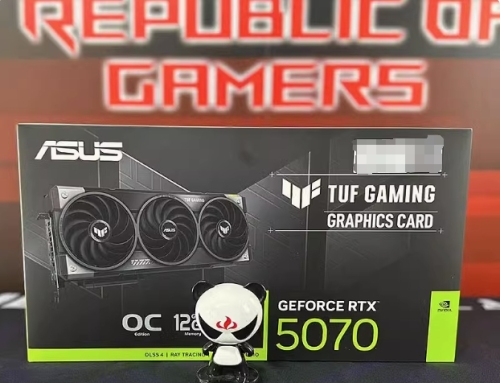

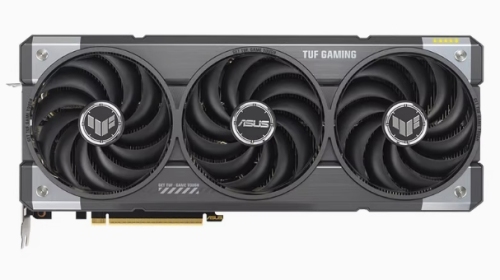

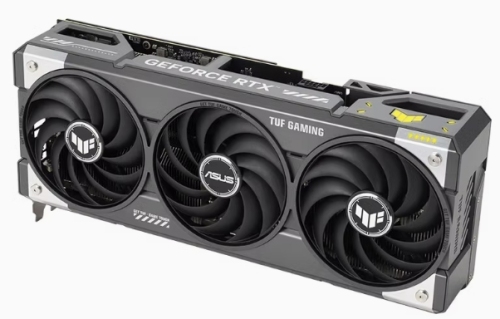

ASUS TUF-RTX5070-O12G-GAMING Full Specifications

‌Basic Specifications‌

• ‌GPU Model‌: NVIDIA GeForce RTX 5070
• ‌Architecture‌: Blackwell (8nm process)
• ‌CUDA Cores‌: 6144
• ‌Memory‌: 12GB GDDR7
• ‌Memory Bus‌: 192-bit
• ‌Memory Speed‌: 28 Gbps
• ‌Interface‌: PCI Express 5.0 x16

‌Performance‌

• ‌Base Clock‌: 2610 MHz
• ‌Boost Clock‌: 2640 MHz (OC Mode)
• ‌AI Compute‌: 1026 TOPs
• ‌Max Resolution‌: 7680×4320 @ 60Hz
• ‌3D API Support‌: DirectX 12 Ultimate, OpenGL 4.6

‌Design & Cooling‌

• ‌Cooling System‌: Triple Axial-tech Fans
• ‌Thermal Solution‌: Phase-change GPU thermal pads
• ‌Durability Features‌: Protective PCB coating, dual ball-bearing fans
• ‌Dimensions‌: 329 × 140 × 62.5 mm
• ‌Weight‌: 1533 grams

‌Connectivity‌

• ‌Output Ports‌:
  • 1× HDMI 2.1b
  • 3× DisplayPort 2.1a
• ‌Power Connector‌: 16-pin (12VHPWR)
• ‌Recommended PSU‌: 750W

‌Additional Features‌

• ‌VR Ready‌: Yes
• ‌Ray Tracing‌: 3rd-gen RT Cores
• ‌DLSS Support‌: AI-accelerated upscaling
• ‌ASUS Enhancements‌: Auto-Extreme manufacturing, military-grade capacitors

‌Compatibility‌

• ‌OS Support‌: Windows 11, Linux
• ‌Chassis Requirements‌: Mid-tower or larger (supports 3.5-slot design)
