40 Hz – 20 kHz -10 dB
Nominal Dispersion 120° H @ -6 dB points
Maximum SPL 122 dB
Crossover type 2 way, active

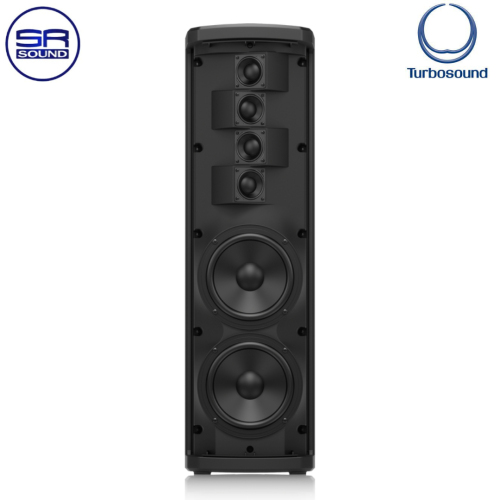

Transducers2 x 6.5″ (167 mm) LF driver
4 x 2″ (54.2 mm) HF driver
Limiter Independent high, mid and low frequencyAmplifierMaximum output power* 600 W
TypeLF: Class-D
HF: Class AB
Protection Short circuit, open circuit, thermal

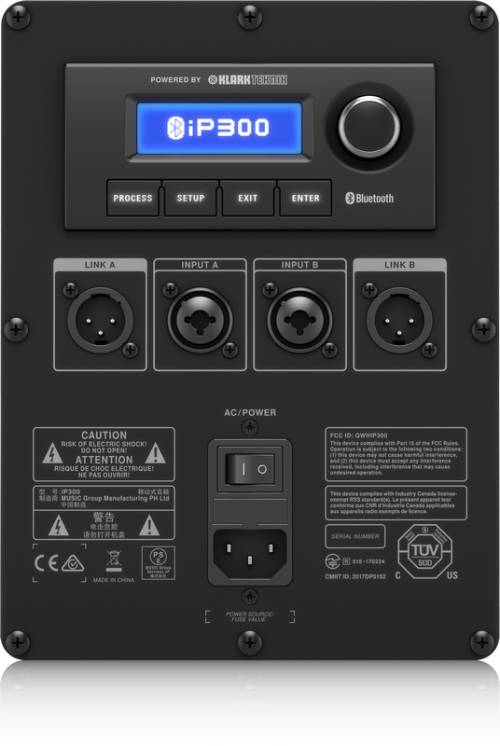

Amplifier channels 2ConnectorsInput A / B 2 x combo jack / XLR
Sensitivity 4 dBu, nominal
Input impedance 16 kΩ unbalanced, 32 kΩ balanced
Maximum input level +22 dBu
Link output XLR
Mains supplyIEC mains connector with
integrated power switch†ControlsHardware Rotary push-encoder
Software iOS/Android interface via BluetoothDSPFactory EQ presets Positioning, sound mode
Display LCD 128 x 32, blue, backlit
Level Main
Equalisation Bass, middle and treble
Protection Lock-out function for all settingsInput MixerEqualisation Bass and treble
Reverb KLARK
