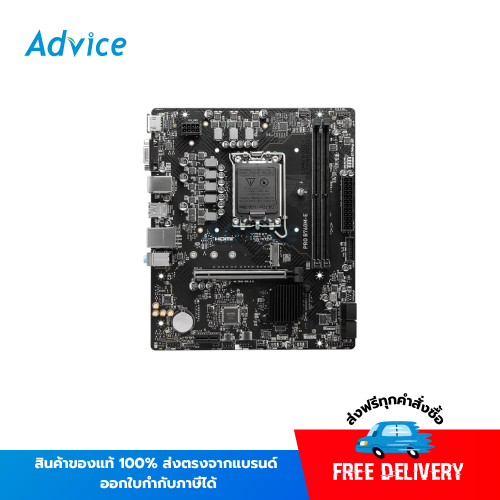

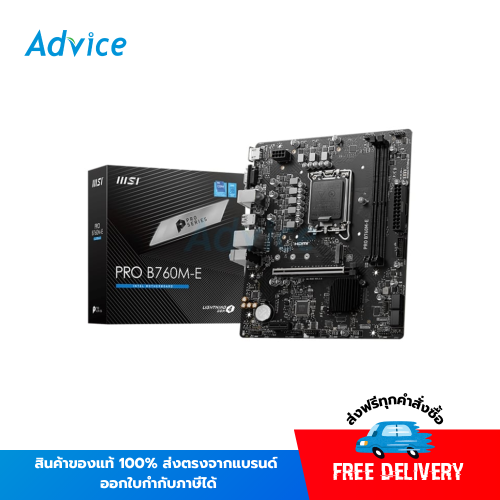

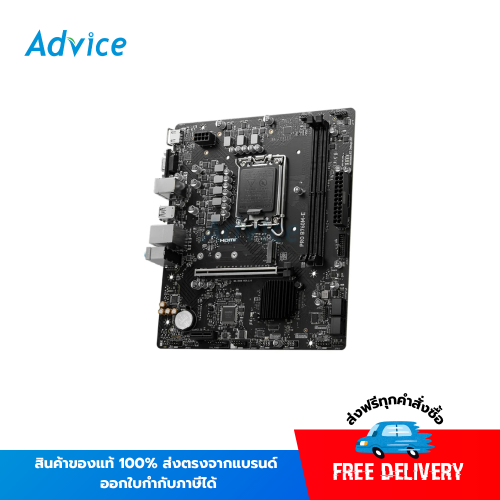

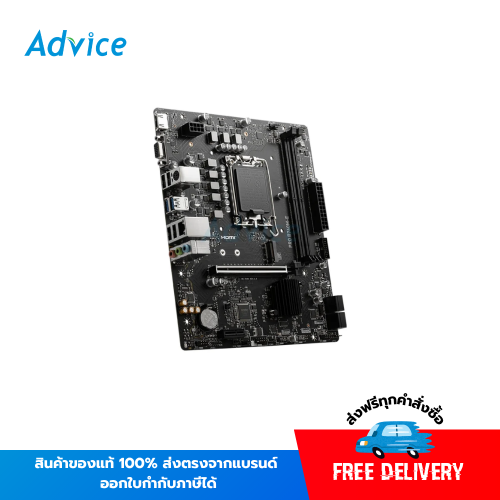

MAINBOARD (1700) MSI PRO B760M-E DDR5

** ประกัน 3 ปี

Support CPU : 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
From Factor : Micro ATX
Memory Channel : Dual Channel DDR5 2DIMM
Memory Support : up to 6400(O.C.)
Memory MAX : 96GB
M.2 Slot : 1 slot
SATA III 6G : 4 ports
PCIe 4.0x16 : 1 slot
Lan Port : 1 Gigabit LAN
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost : Advanced technology to deliver pure data signals for the best performance, stability and compatibility
AUDIO BOOST : Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength

รายละเอียดสินค้า

อ้างอิงจาก : www.msi.com

คุณสมบัติ

Brand	MSI
Model	PRO B760M-E DDR5
CPU Support	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
CPU Brand	Intel
Socket	1700
Chipset	Intel B760
Memory Support	2 x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory Bus	6400
Graphics	1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Multi Graphic Support	N/A
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots	1 x PCI-E x16 slot 1 x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Maximum PCIe Version	PCIe 4.0
Storage	1 x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
M.2 Storage Type Support	NVMe
M.2 Slot	1
USB	4 x USB 2.0 (Rear) 4 x USB 2.0 (Front) 2 x USB 3.2 Gen1 Type A (Rear) 2 x USB 3.2 Gen1 Type A (Front)
Internal I/O Connectors	1 x Power Connector(ATX_PWR) 1 x Power Connector(CPU_PWR) 1 x CPU Fan 2 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Com Port (JCOM) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 2 x USB 3.2 Gen1 Type A ports
Back Panel Connectors	4 x USB 2.0 2 x USB 3.2 Gen 1 5Gbps (Type-A) 1 x HDMI™ 1 x VGA 1 x Keyboard / Mouse 1 x LAN port Audio Connectors
LAN	Realtek® RTL8111H Gigabit LAN
Wireless Data Network	None
Form Factor	Micro ATX
H/W Monitoring	N/A
BIOS	N/A
Special Features	N/A
Software Features	N/A
Operating System Support	Support for Windows® 11 64-bit, Windows® 10 64-bit
Package Contents	N/A
Package Dimension	(W x D x H) : 25.50 x 26.00 x 5.00 cm
Gross Weight	0.00 KG
Volume	3,315.00 cm³
