CS9040
High-Performance Center Channel Speaker with Integrated 8" Bass Radiator


High-performance center channel speaker: 50 Hz – 22 kHz
Powerful speaker array for remarkable, focused vocal clarity
Integrated 8” bass radiator
Iconic and visually powerful design features machined, aircraft-grade aluminum construction
CENTER CHANNEL
Total Pieces1
Availability US
OrientationHorizontal
Height5.95" (15.11 cm)
Width20.75" (52.71 cm)
Depth12" (30.48 cm)
Weight20 lbs (9.07 kg)
MaterialsAluminum
Enclosure TypeAcoustically Tuned Vent

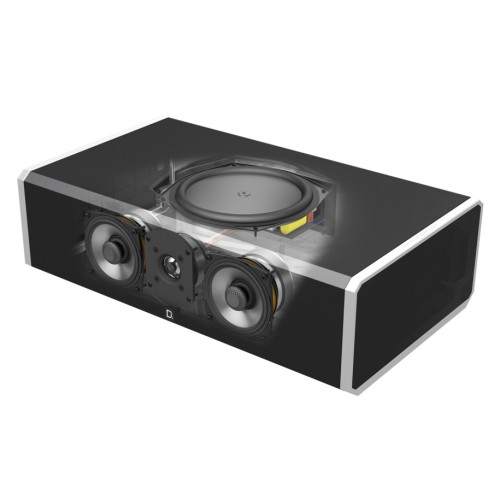

Front Array Driver Complement
(1) 1" (2.54 cm) d (Round) Aluminum Dome - Tweeter
(2) 4.5" (11.43 cm) d (Round) BDSS Bass - Mid/Woofer
(1) 8" (20.32 cm) d (Round) - Bass Radiator
AUDIO QUALITY
Total Frequency Response50 Hz → 40,000 Hz
Nominal Impedance8 ohms
Max Sensitivity (1 watt @ 1 meter)89 dB
INPUTS
Audio Inputs

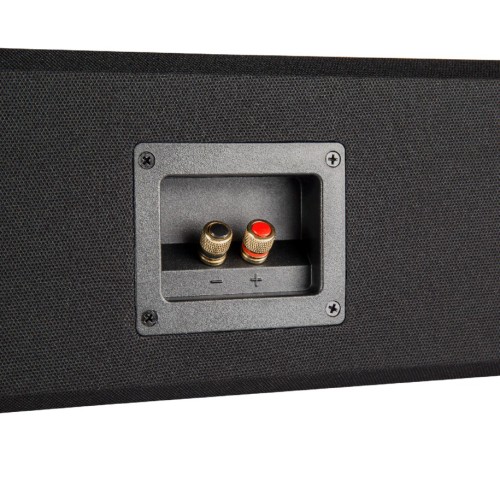

Speaker Inputs(1) Pair of 5-Way Binding Posts - Gold Plated
