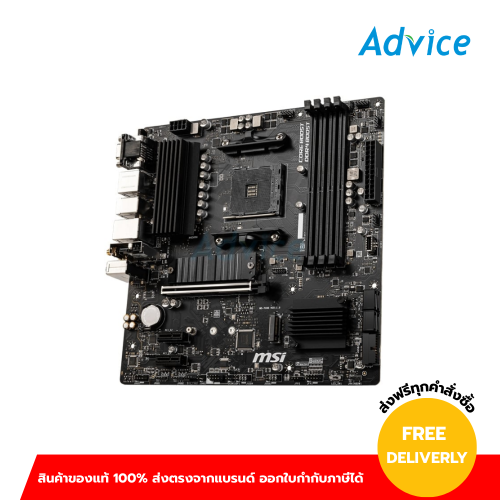

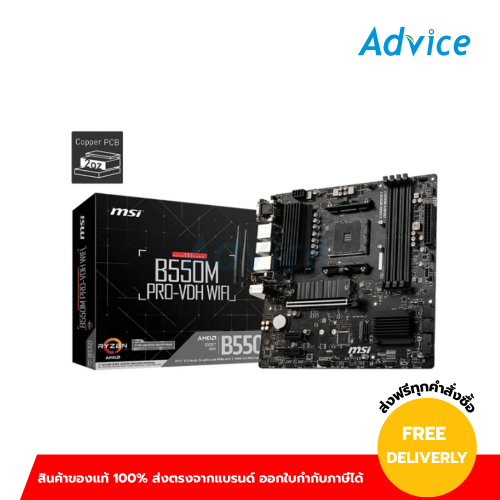

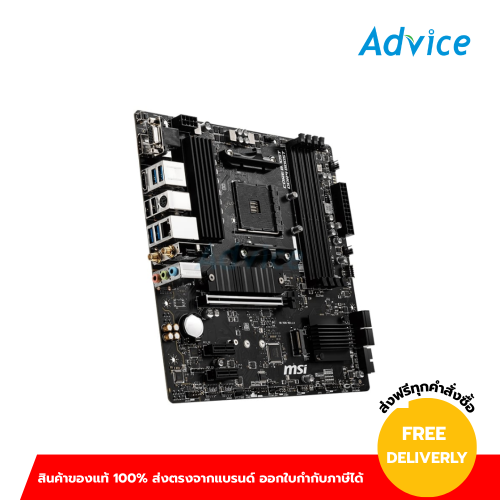

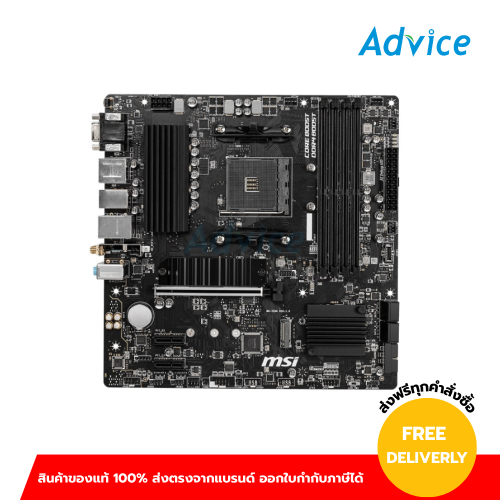

MAINBOARD (AM4) MSI B550M PRO VDH WIFI DDR4-A0132108

Product Details

Reviews (0)

Home Product Details MAINBOARD (AM4) MSI B550M PRO VDH WIFI DDR4-A0132108

_฿ 4,790.00 5,290.00 10%off

Ship to

Shipping

Quantity

Product Details

Reviews (0)

Support CPU : AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors
From Factor : Micro ATX
Memory Channel : Dual Channel DDR4 4DIMM
Memory Support : up to 4400(O.C.)
Memory MAX : 128GB
M.2 Slot : 2 slots
SATA III 6G : 4 ports
PCIe 4.0x16 : 1 slot
Lan Port : 1 Gigabit LAN
Wireless : Wi-Fi 5
Premium Thermal Solution: 7W/mK pad
Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
Audio Boost: Reward your ears with studio grade sound quality

Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

**Not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G

คุณสมบัติ MAINBOARD (AM4) MSI B550M PRO VDH WIFI DDR4

แบรนด์ / โมเดล

Brand	MSI
Model	B550M PRO-VDH WIFI

ข้อมูลจำเพาะ

CPU Support	Supports AM4 socket 3rd Gen AMD Ryzen^™ processors, and future AMD Ryzen^™ processors with BIOS update
Socket	AM4
Chipset	AMD B550
CPU Brand	AMD
Memory Support	4x DDR4 memory slots, support up to 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE - 1DPC 1R max speed 4400 MHZ - 1DPC 2R max speed 3733 MHZ - 2DPC 1R max speed 3866 MHZ - 2DPC 2R max speed 3466 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Maximum Memory Bus	4400
Graphics	1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz* 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz* 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz* Maximum shared memory of 16 GB * Available for the processor with integrated graphics.
Multi Graphic Support	N/A
Expansion Slots	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)* 2x PCIe 3.0 x1 slots * The supported specification depends on installed processor.
Maximum PCIe Version	PCIe 4.0
Storage	AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) - Supports PCIe 4.0/ 3.0 x4* - Supports SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) - Supports PCIe 3.0x4 - Supports 2242/ 2260/ 2280 storage devices * The supported specification depends on installed processor.
M.2 Storage Type Support	NVMe
M.2 Slot	2
Audio	Realtek® ALC892 Codec 7.1-Channel High Definition Audio
H/W Monitoring	N/A
BIOS	N/A
Special Features	N/A
Software Features	N/A
Operating System Support	N/A
Form Factor	Micro ATX

การเชื่อมต่อ

USB	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Internal I/O Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper

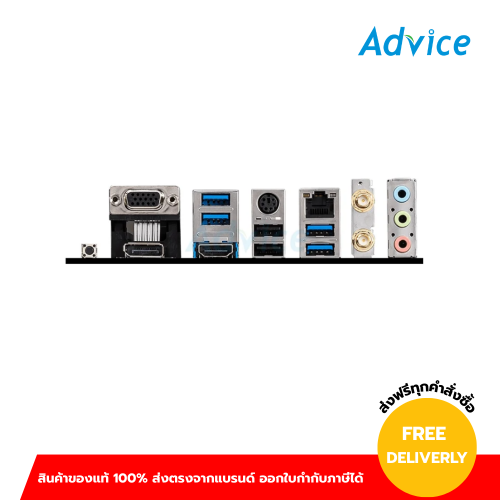

Back Panel Connectors	1x VGA 4x USB 3.2 Gen 1 5Gbps Type-A 1x Keyboard / Mouse 1x LAN 1x Flash BIOS Button 1x DisplayPort 1x HDMI 2x USB 2.0 2x Wi-Fi Antenna connectors 3x Audio jacks
LAN	1x Realtek^® 8111HN Gigabit LAN controller
Wireless Data Network	Wi-Fi AC Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2

กำลังไฟ

Internal I/O Connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper

ข้อมูลทั่วไป

Dimension	(W x D x H) : 24.40 x 24.40 x 0.00 cm
Package Dimension	(W x D x H) : 27.00 x 28.00 x 6.30 cm
Net Weight	0.00
Gross Weight	1.11
Volume	4762.80

การรับประกัน

warranty	3Y
